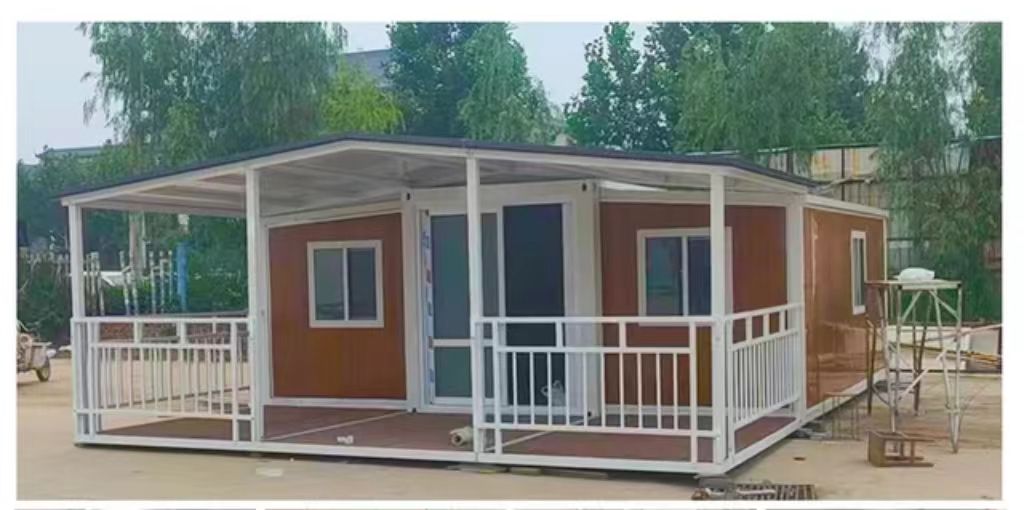

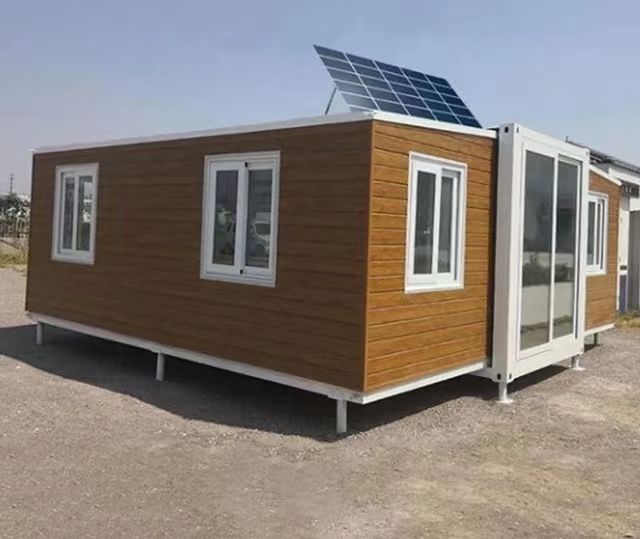

folding house expandable modular home 20ft 30ft 40ft prefab house australia expandable container house home office

Short Description:

★ The color steel plate is made by bonding and rolling the steel plate and polystyrene through the adhesive, giving full play to the characteristics of different materials, so that the prefab house has good fire resistance, thermal insulation and sound insulation performance.

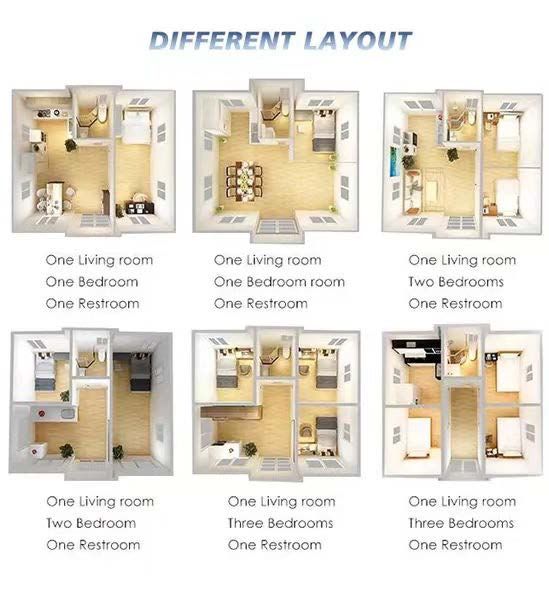

★ All components of the prefabricated house are produced by standard factory prefabrication, which not only facilitates installation and disassembly, but also enriches the layout of the prefab house and the functionality of the house by freely adding, reducing and changing the positions of doors, windows and partitions.

★ The components of the movable room are recycled. After the components are galvanized, they can be used for 20 years without any construction waste.

★ The complete disassembly and assembly of the components of the mobile house makes the house easy to transport and saves costs.

Send email to us

Product Detail

Product Tags

Suzhou Zhongchengsheng Metal Material Manufacturing CO., LTD

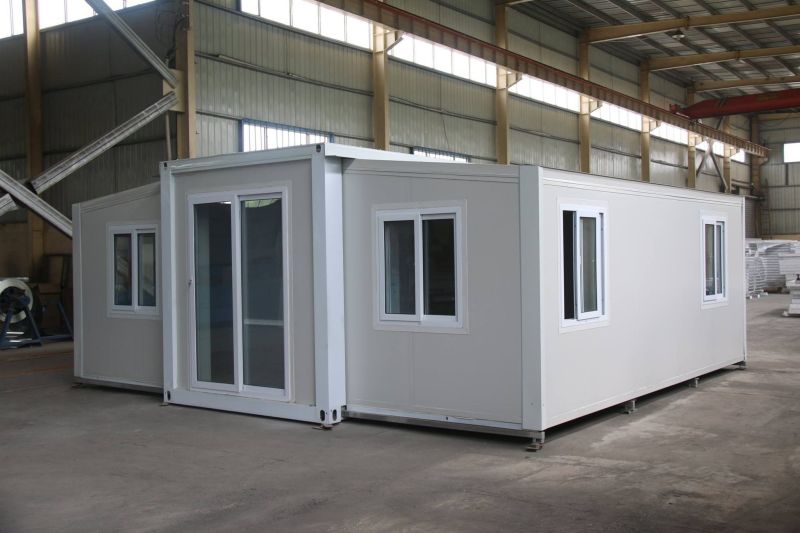

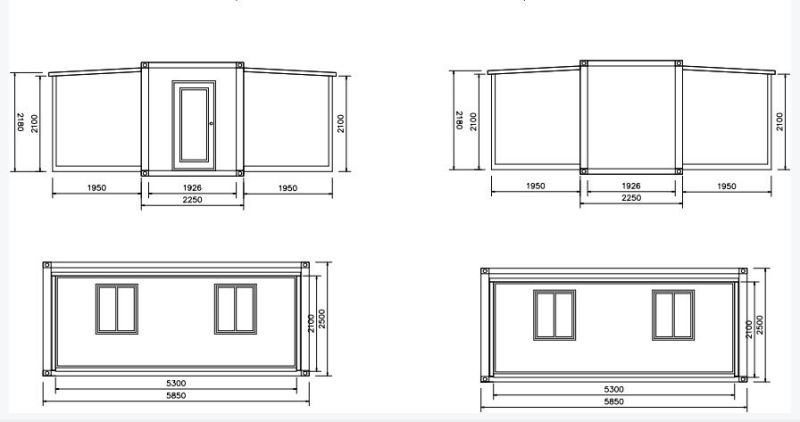

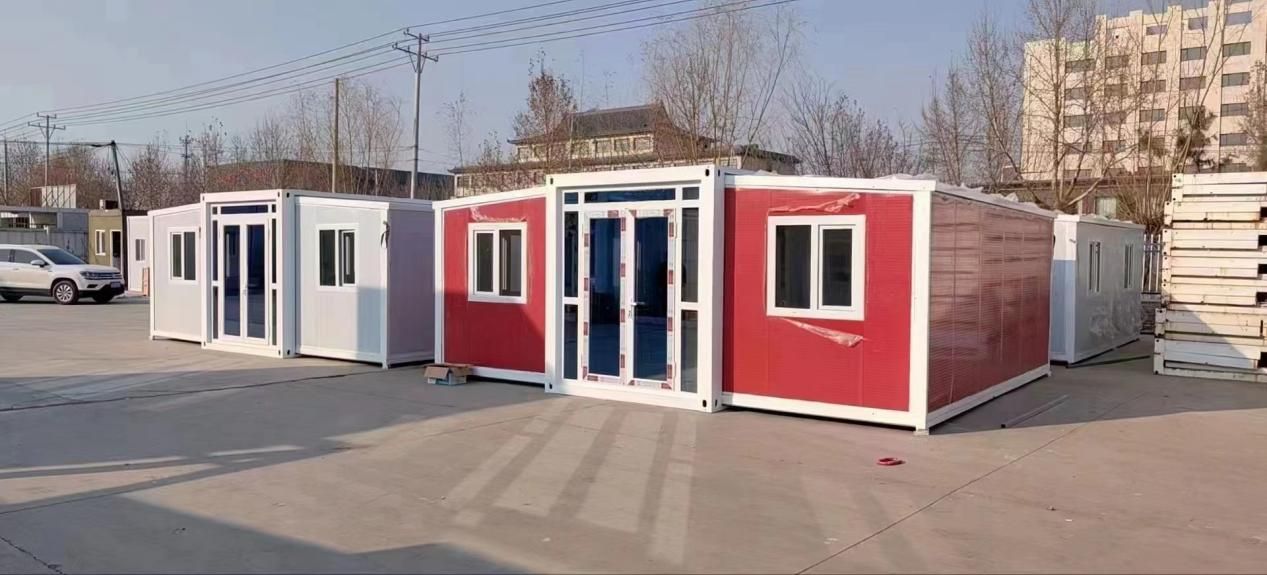

37㎡Expandable folding 20 - foot container room			OPEN SIZE:6350（6150）585025002180MM FOLD SIZE:58502250*2500MM
Art.No	Items	Specification	Qty	Unit	Photo

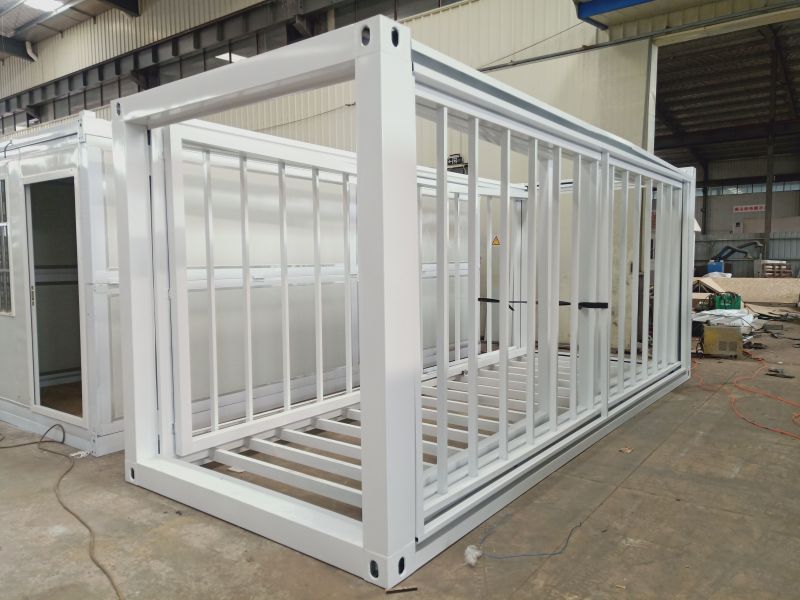

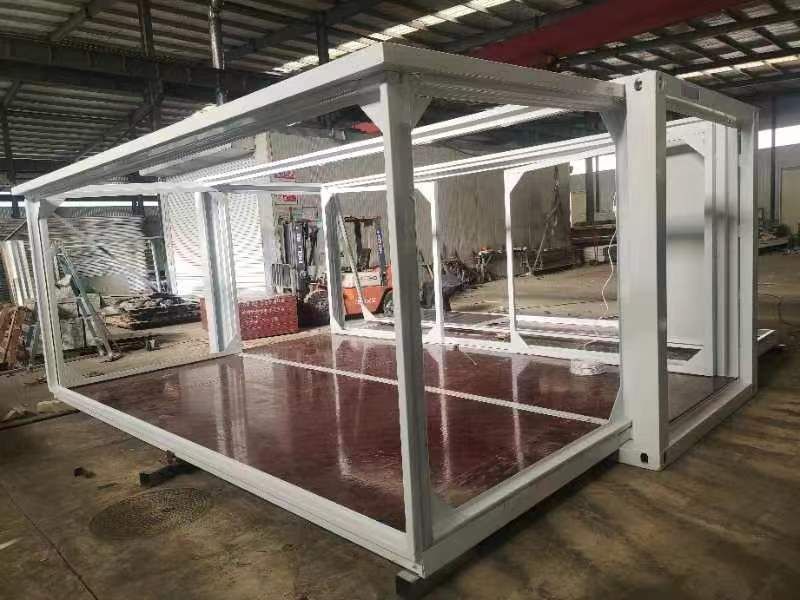

1	Roof Structure	Top side beam 1001003.0mmQ235B front and rear beam 2.0mm fold Q235B side top frame special-shaped 40 * 80 * 1.4 galvanized	1	sets

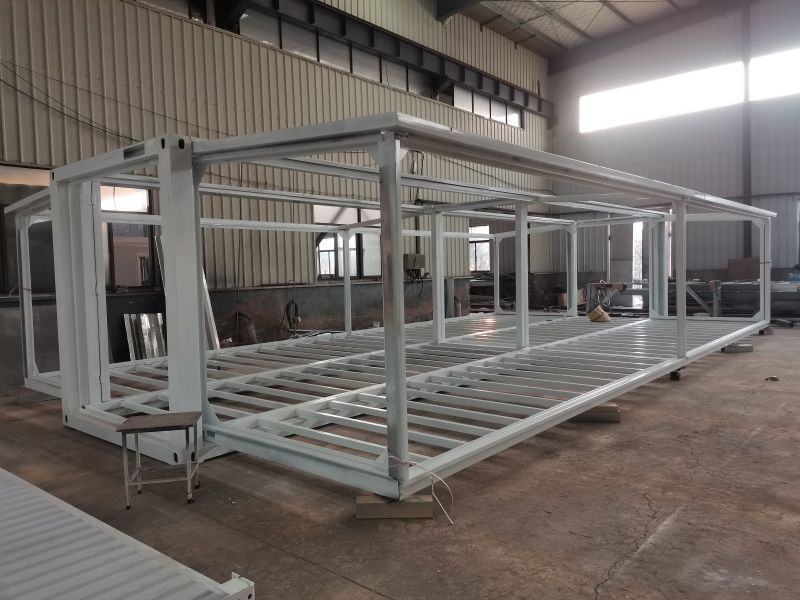

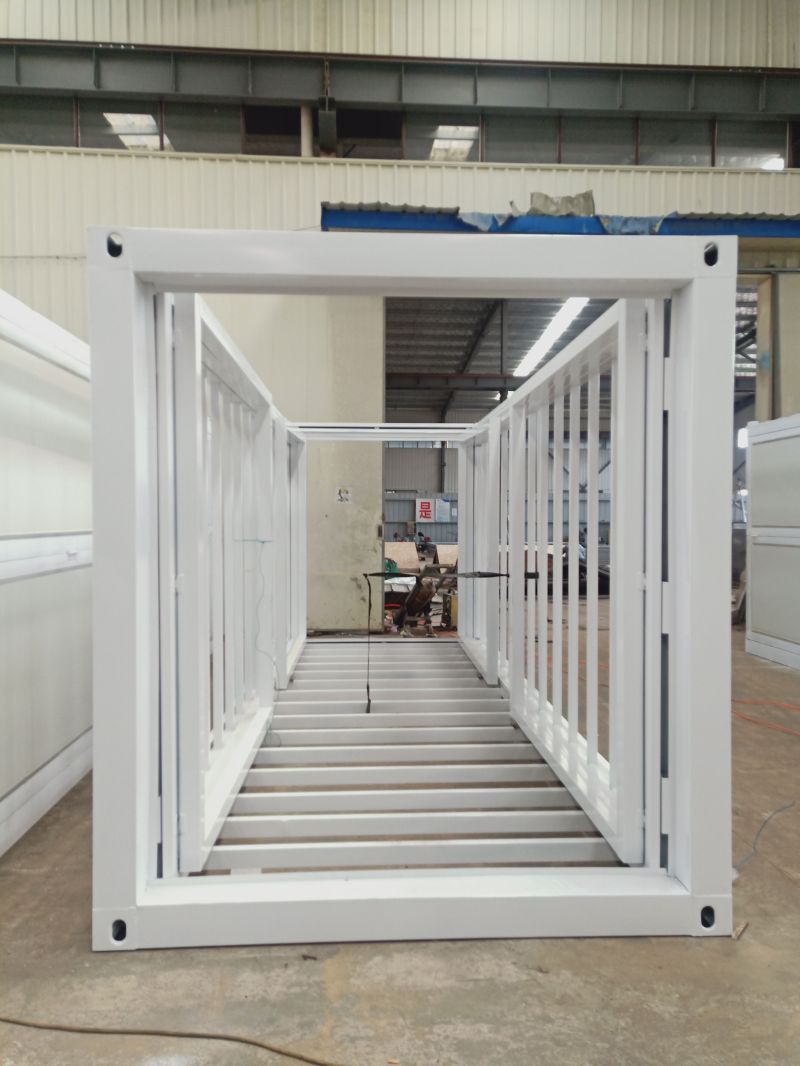

2	Base structure	Base side beam 1001003.0mmQ235B 80801.5mm galvanized square pipe bottom front and rear beam 2.0mmQ235B fold bottom purlin 40601.2mm bottom frame of galvanized square pipe side 40 * 80 * 1.4 bottom purlin of galvanized square pipe side 40601.2mm bottom of galvanized square pipe side front and rear fold 2.0mmQ235B side wall frame alien 40 * 80 * 1.4 galvanized	1	sets
3	Corner Column	2.3mmQ235B fold	4	pcs

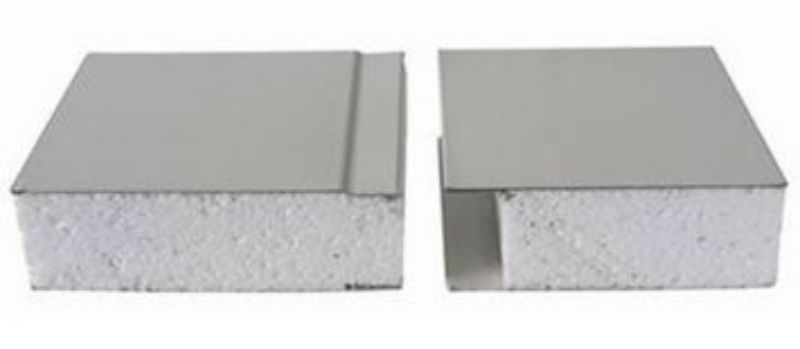

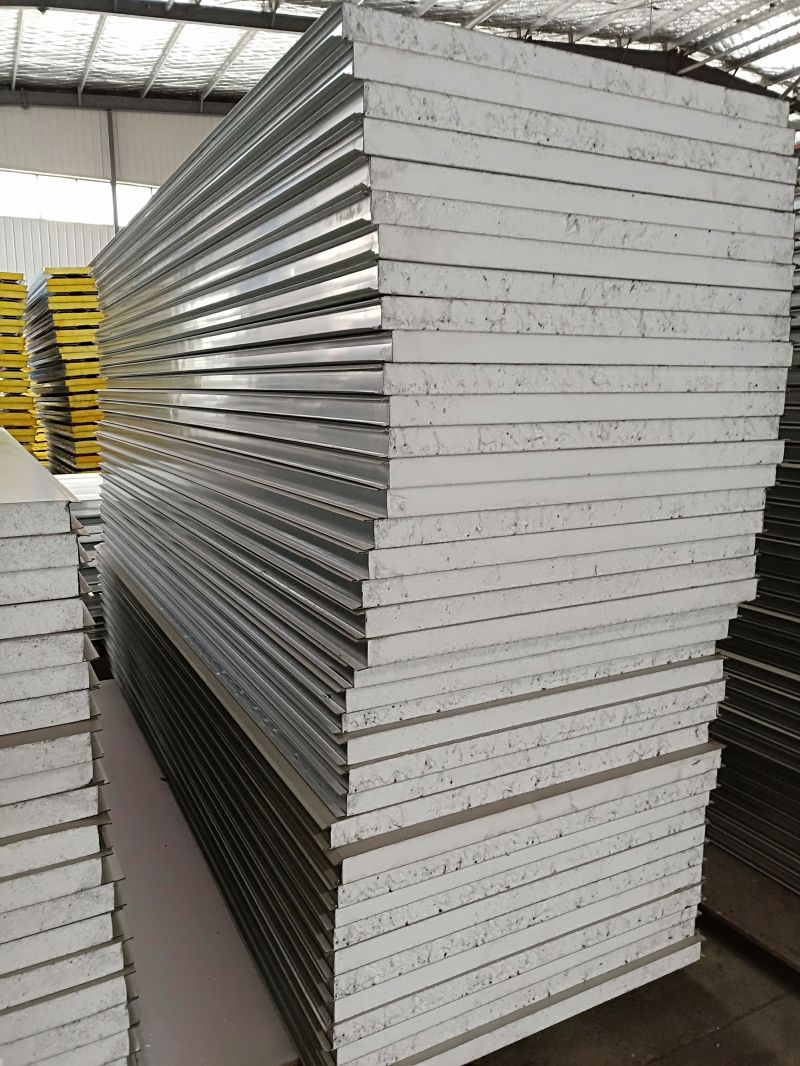

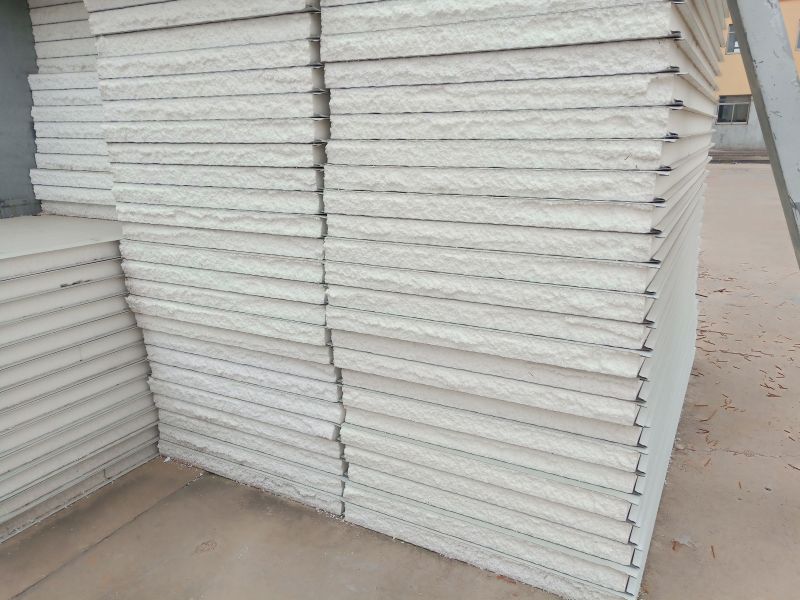

4	Wall panel	50mm double-sided 0.3mm white and gray color steel EPS composite plate, double-sided pressure reinforcement, B1 class flame retardant fire prevention.	51	m2
5	Roof panel	50mm double-sided 0.3mm white and gray color steel EPS composite plate, double-sided pressure reinforcement, B1 class flame retardant fire prevention.	29	m2

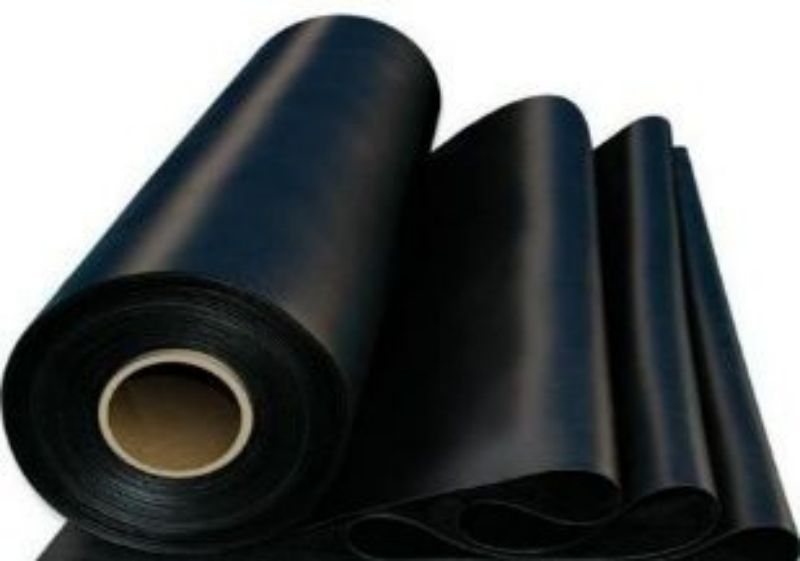

6	Middle roof cover	Rainrainbow waterproof coil	13.5	m2

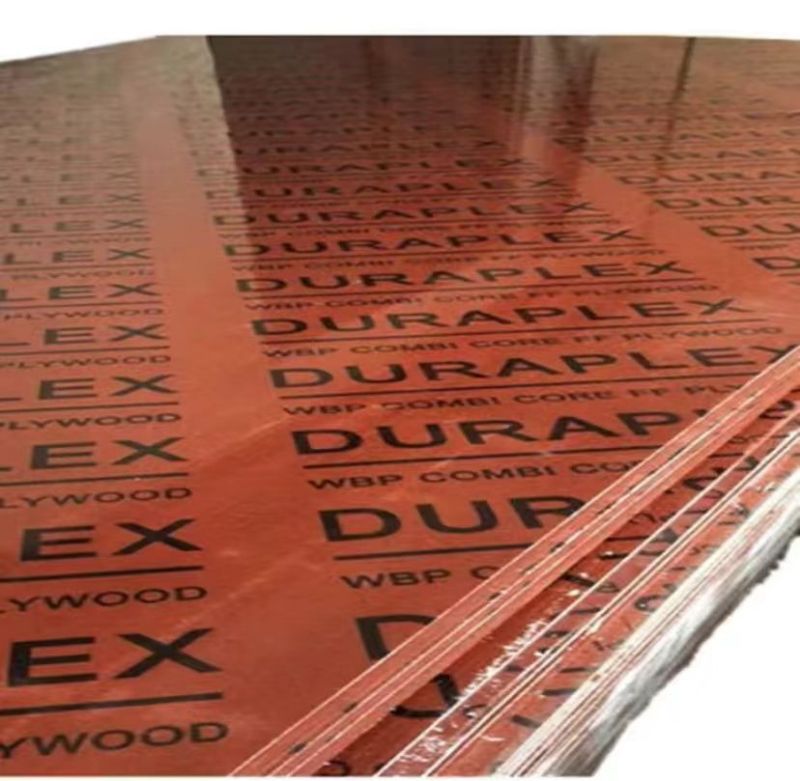

7	Base board	12mm bamboo and wood multilayer wooden boards	33	m2

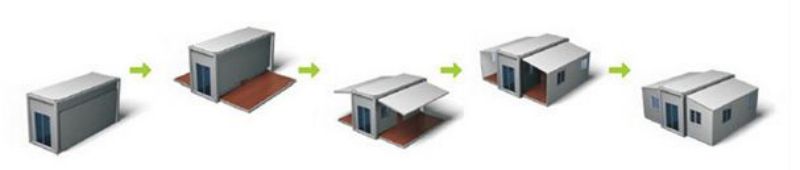

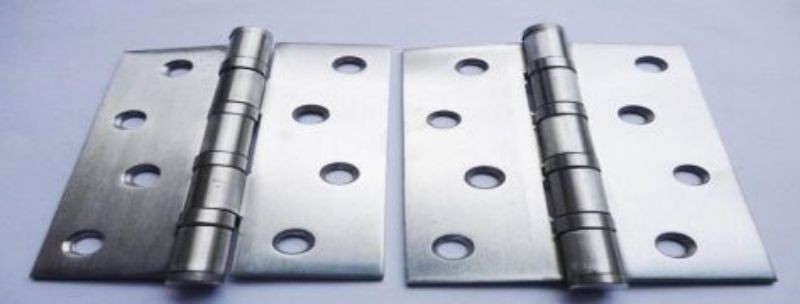

8	Expandable connection	Stainless steel hinge, 15 mm and 10 mm	42	set

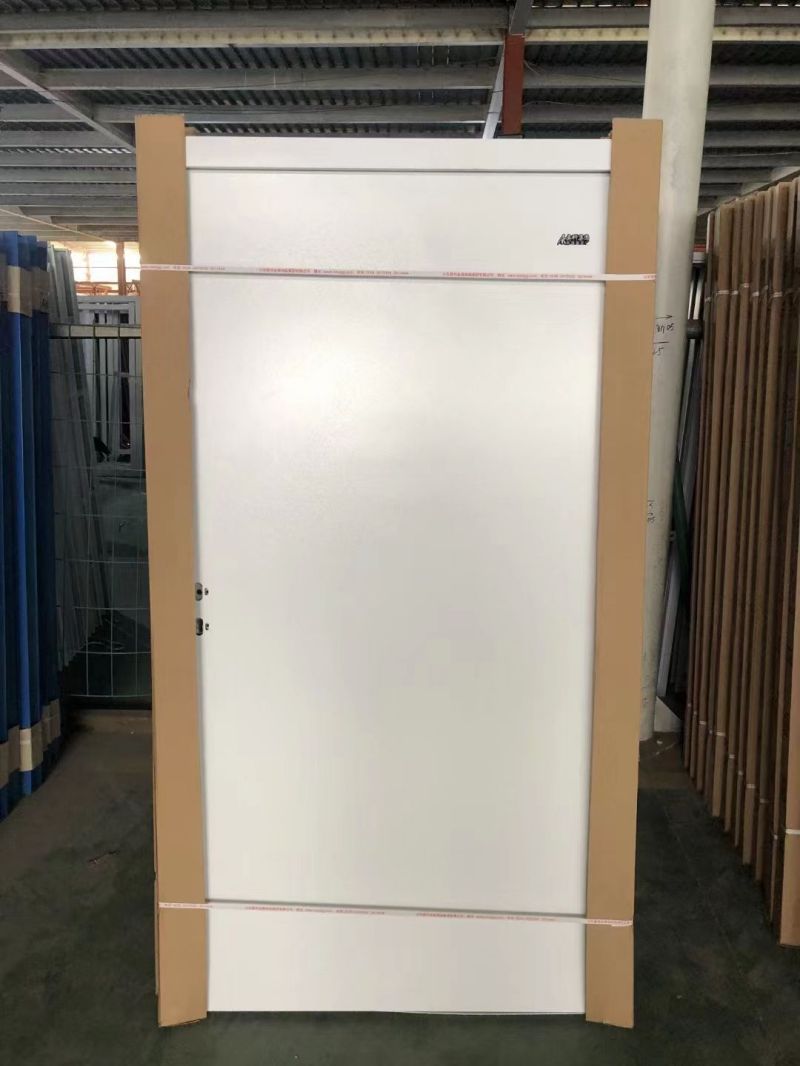

9	The main door	97019700.4mm White standard steel door	1	unit
9	Indoor door	97019700.4mm White standard steel door	2	unit

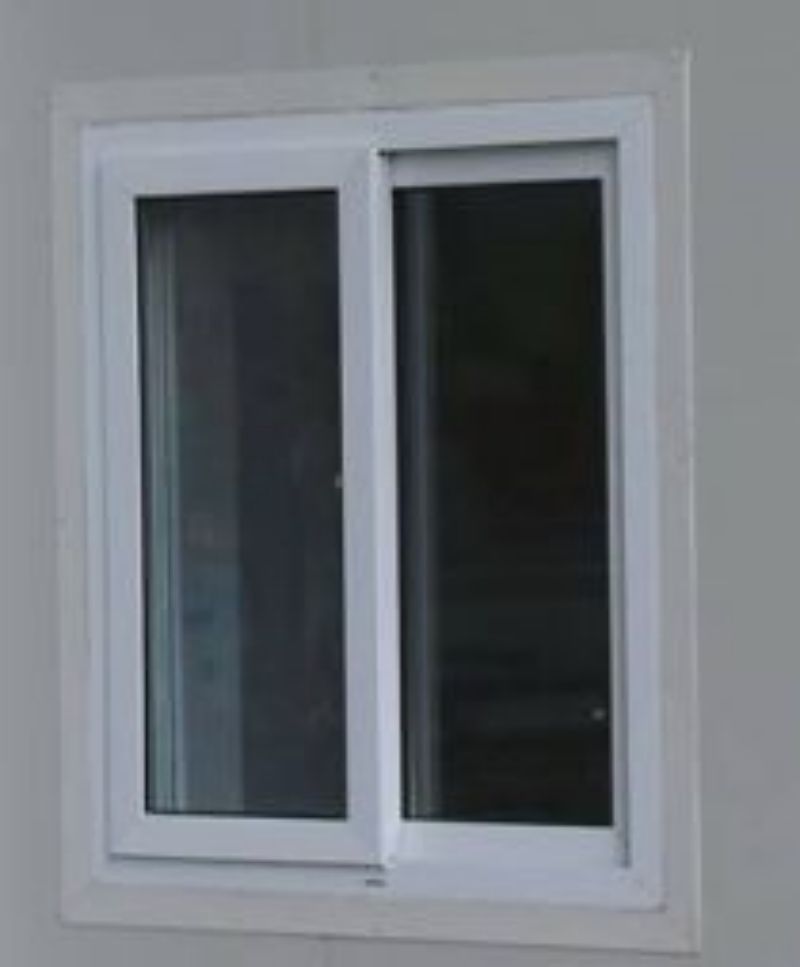

10	Windows	920 * 1100mm white aluminum alloy single glass toughened strip screen window	6	unit

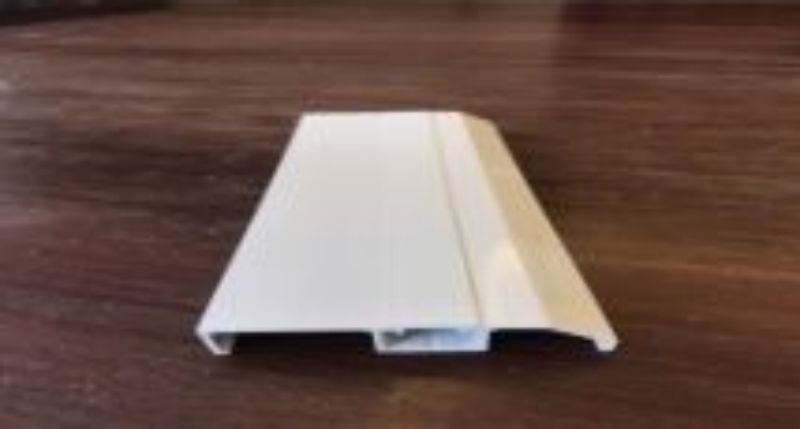

12	skirting line	PVC kicking line, rice white	1	Set of

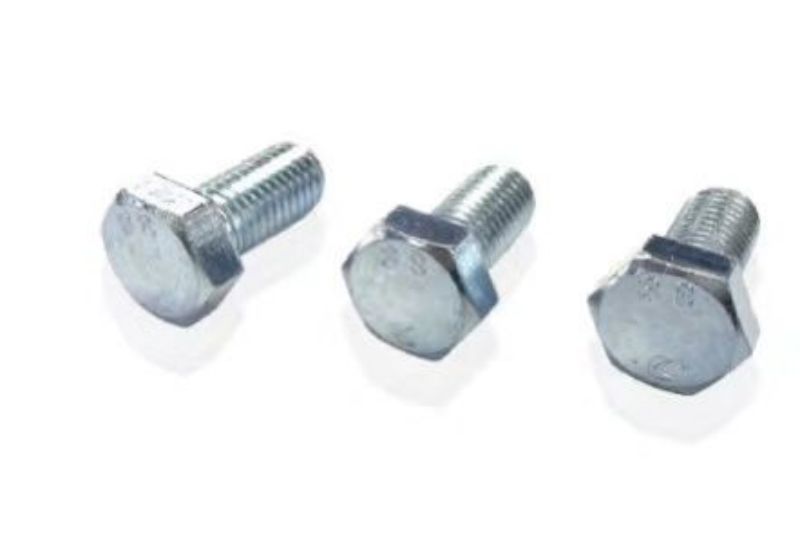

13	Accessories	Connect the fixed bolts	8	set

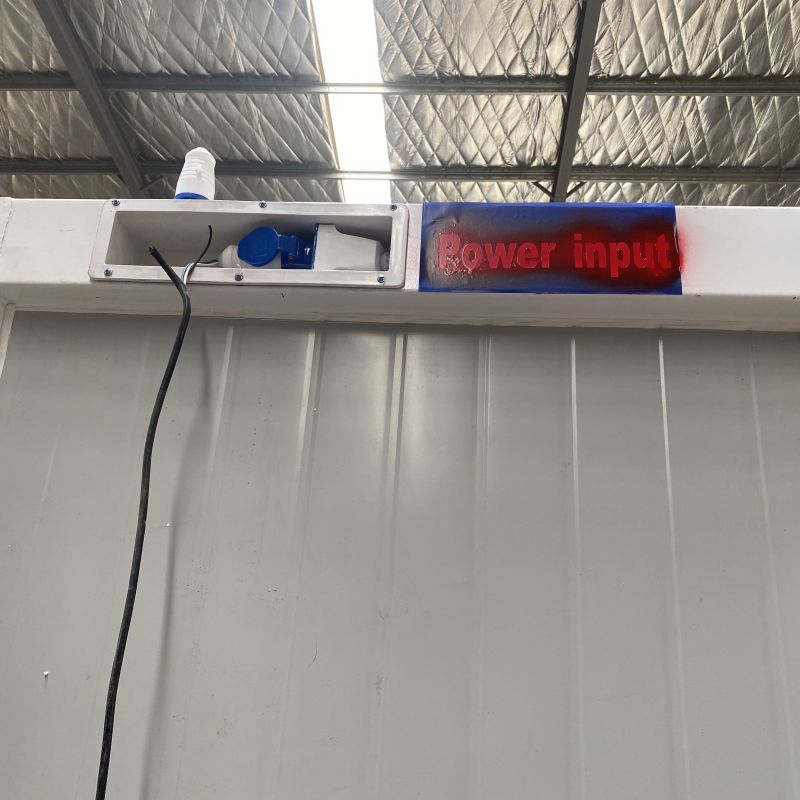

14	Electrical	Power connector	1	Set of

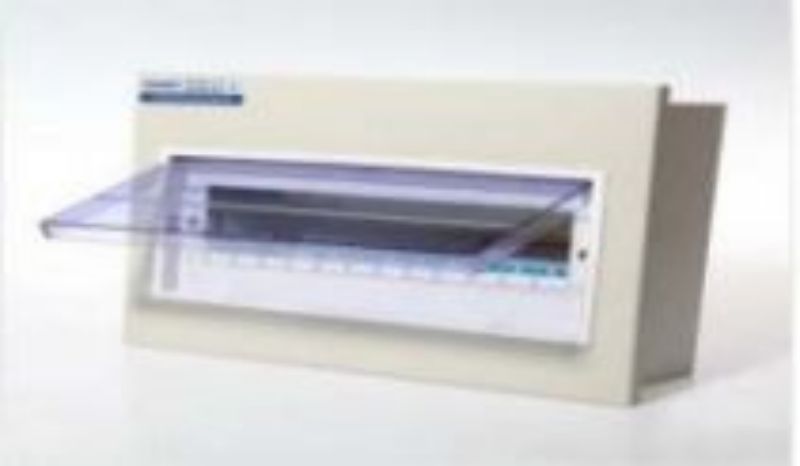

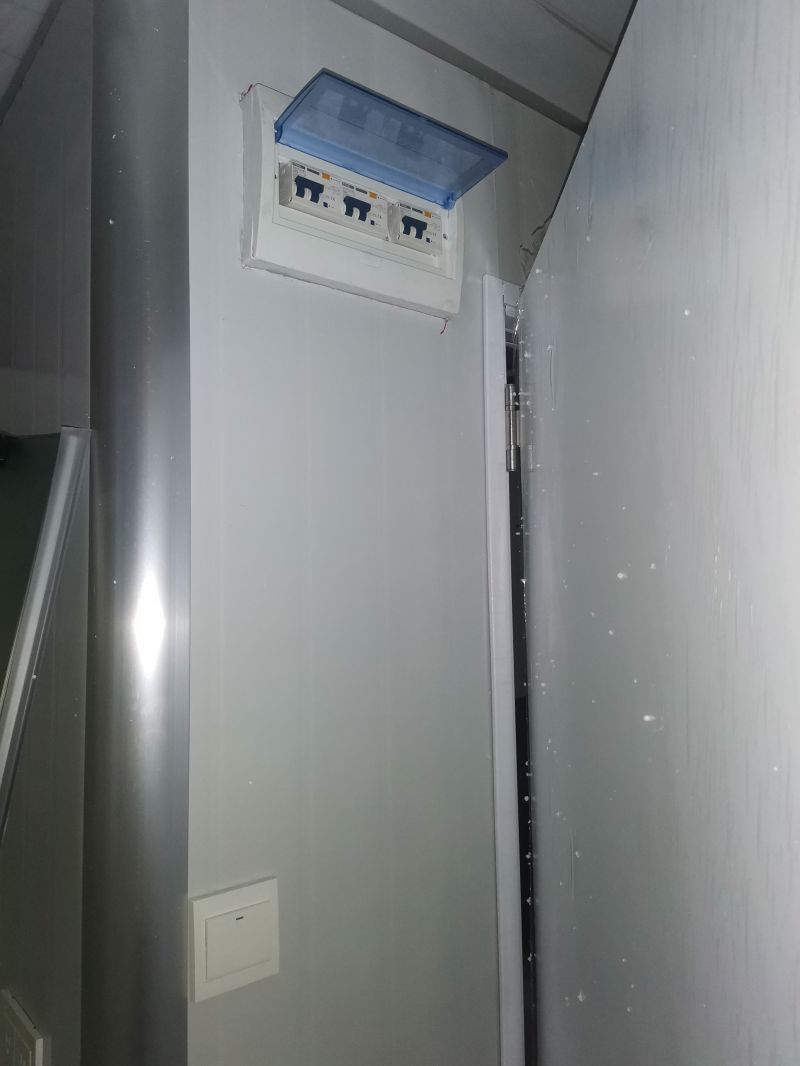

15		distribution box	1	Set of
16		Circuit breaker, protector, 20A	3	set

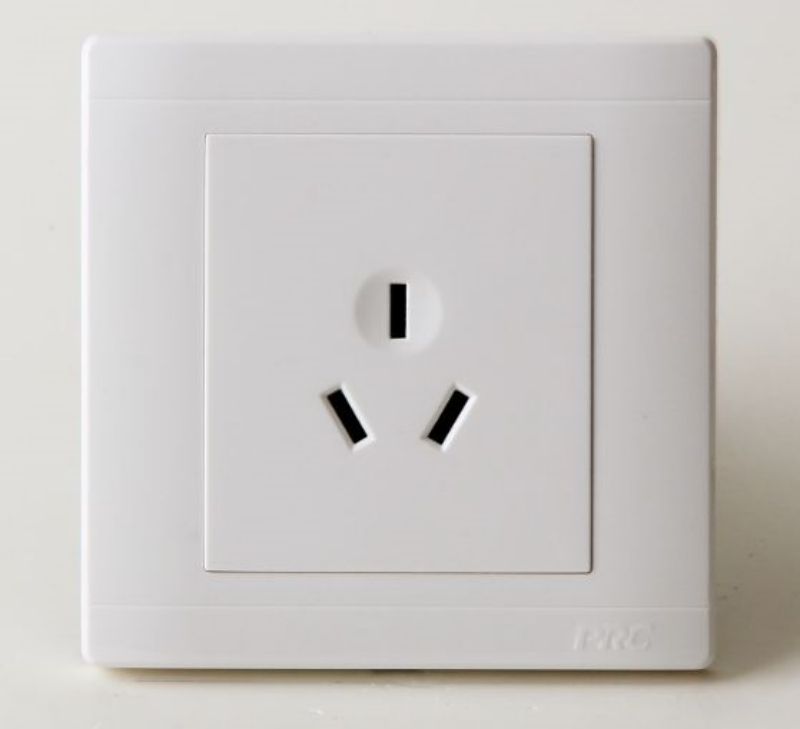

17		Standard socket	8	sets

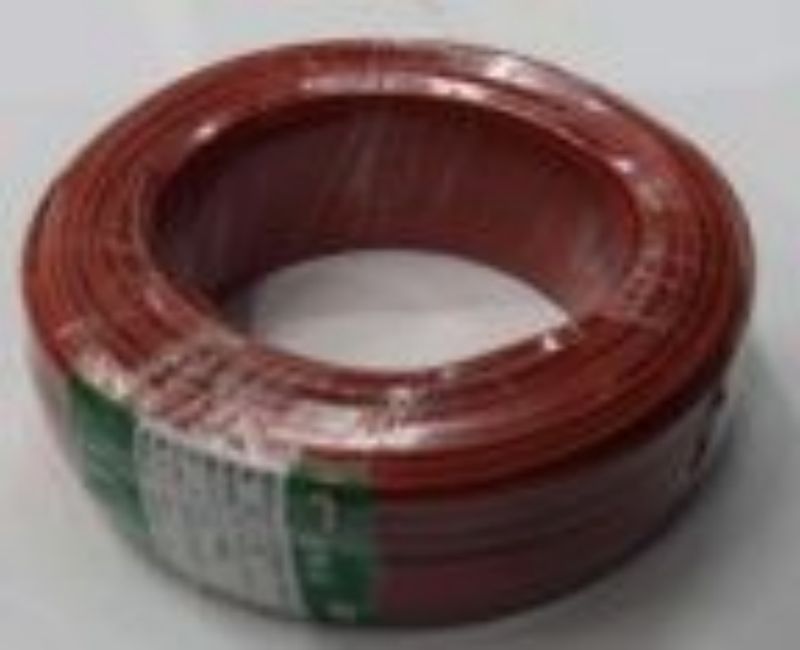

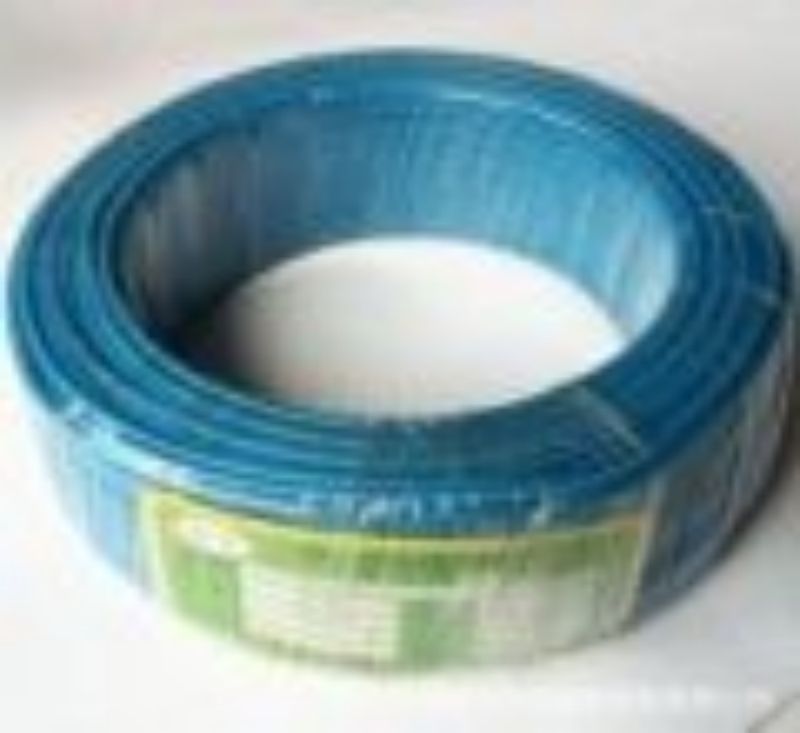

18		National standard inlet line 6² socket line three core 2.5² lamp line two core 1.5²	120	m

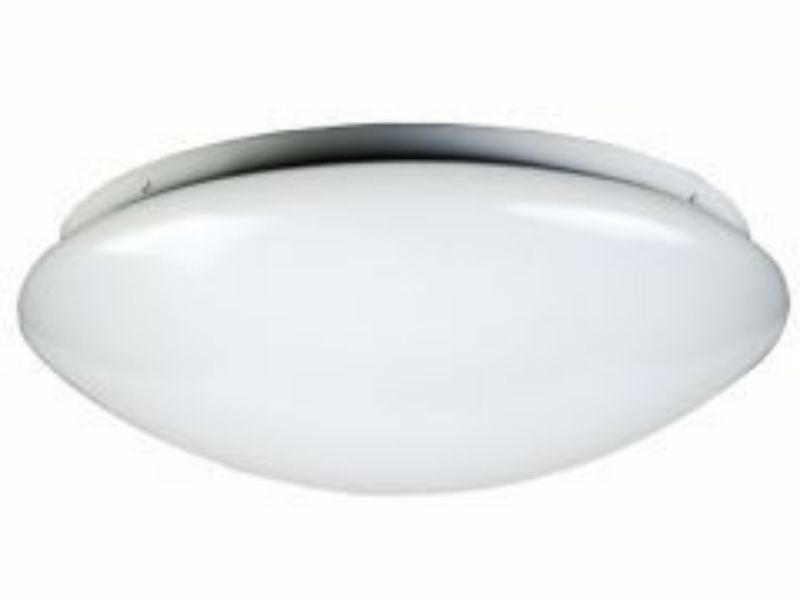

19	LED light	LED ceiling-mounted luminaire	4	pcs

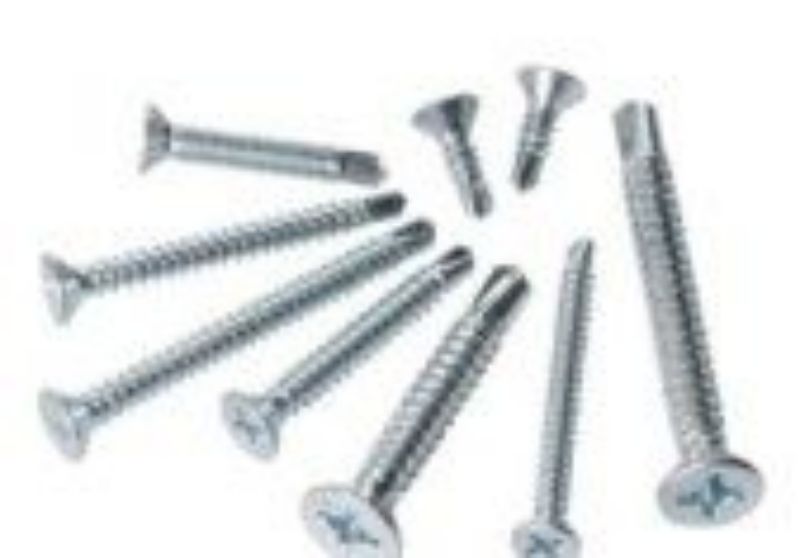

21	Nailing	Small screw (fixed skirline)	100	units

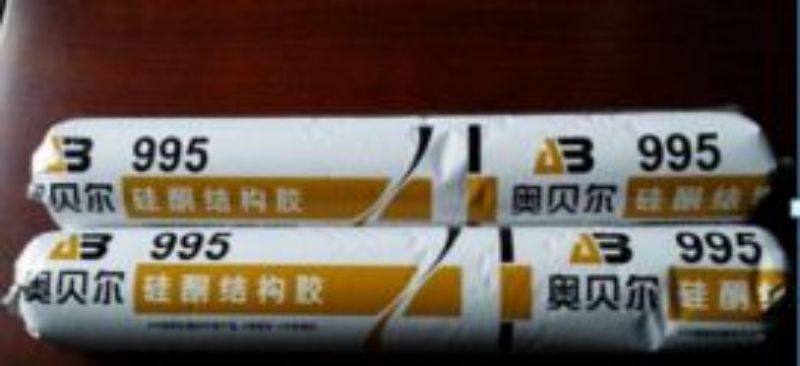

22	Sealant strip	structural adhesive	3	box
Optional item

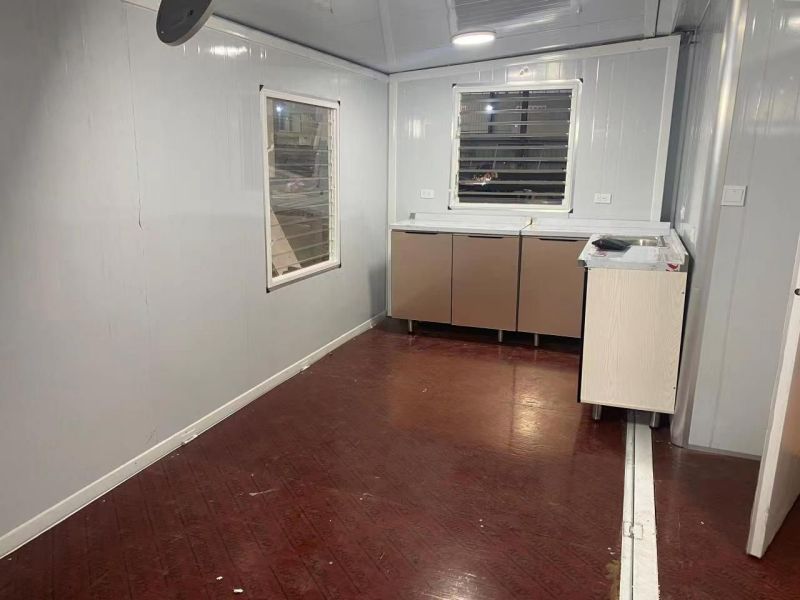

	Kitchen cabinet	3.2 mL type stainless steel countertop cabinet single pot containing faucet	1	set
24	Flushing Toilet	W715 * D415 * H690 transmission hole distance: 350mm	1	set
25	Standing sink	Hand washing design station basin base sink size: 600x400 * 450mm	1	set

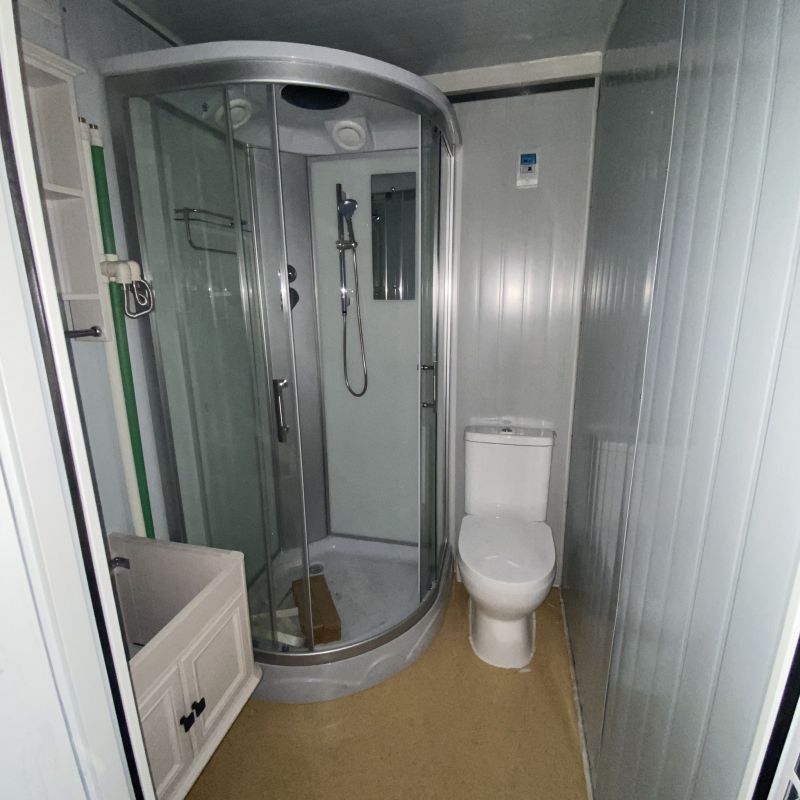

26	shower glass cubicle	900 * 900mm fan aluminum frame + tempered sliding glass door	1	set
